Apache Airflow - Trigger Dag Run Operator

# dags/trigger_rule1.py

from airflow.sdk import DAG, task
from airflow.exceptions import AirflowException
from airflow.providers.standard.operators.bash import BashOperator
import pendulum

with DAG(
    dag_id="trigger_rule1",
    start_date=pendulum.datetime(2025, 1, 1, tz="Asia/Seoul"),
    schedule="0 0 * * *",
    catchup=False,
    tags=["example", "branch"],
) as dag:
    upstream_task1 = BashOperator(
        task_id="upstream_task1",
        bash_command="echo upstream1"
    )

    @task(task_id="upstream_task2")
    def upstream_task2():
        raise AirflowException("upstream2 Exception")

    @task(task_id="upstream_task3")
    def upstream_task3():
        print("정상 처리")

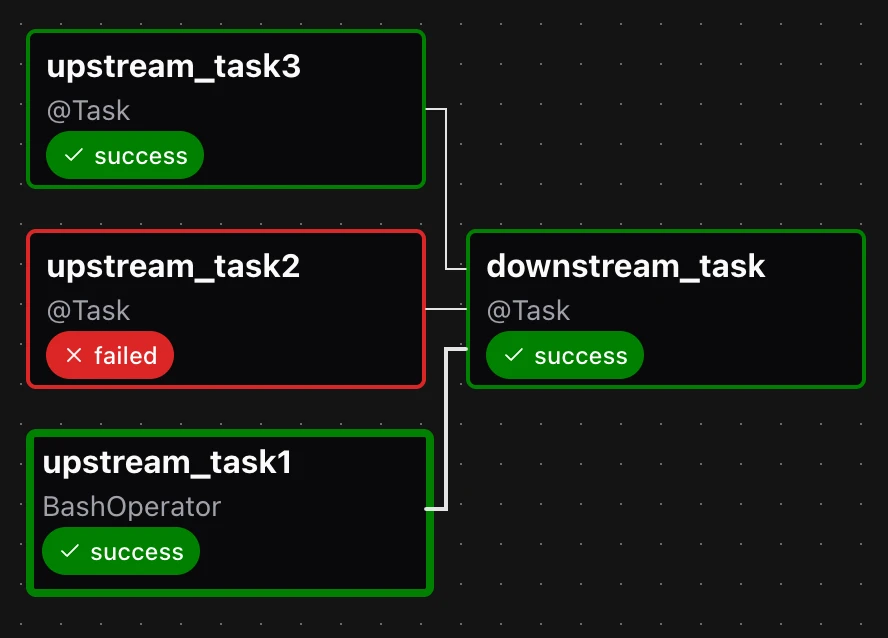

    @task(task_id="downstream_task", trigger_rule="all_done")
    def downstream_task():
        print("정상 처리")

    [upstream_task1, upstream_task2(), upstream_task3()] >> downstream_task()

# dags/trigger_rule2.py

from airflow.sdk import DAG, task
from airflow.providers.standard.operators.bash import BashOperator
import pendulum

with DAG(
    dag_id="trigger_rule2",
    start_date=pendulum.datetime(2025, 1, 1, tz="Asia/Seoul"),
    schedule="0 0 * * *",
    catchup=False,
    tags=["example", "branch"],
) as dag:
    @task.branch(task_id="branching")
    def random_branch():
        import random

        item_lst = ['A','B','C']
        selected_item = random.choice(item_lst)
        if selected_item == 'A':
            return "upstream_task_a"
        elif selected_item == 'B':
            return "upstream_task_b"
        elif selected_item == 'C':
            return "upstream_task_c"

    upstream_task_a = BashOperator(
        task_id="upstream_task_a",
        bash_command="echo upstream1"
    )

    @task(task_id="upstream_task_b")
    def upstream_task_b():
        print("정상 처리")

    @task(task_id="upstream_task_c")
    def upstream_task_c():
        print("정상 처리")

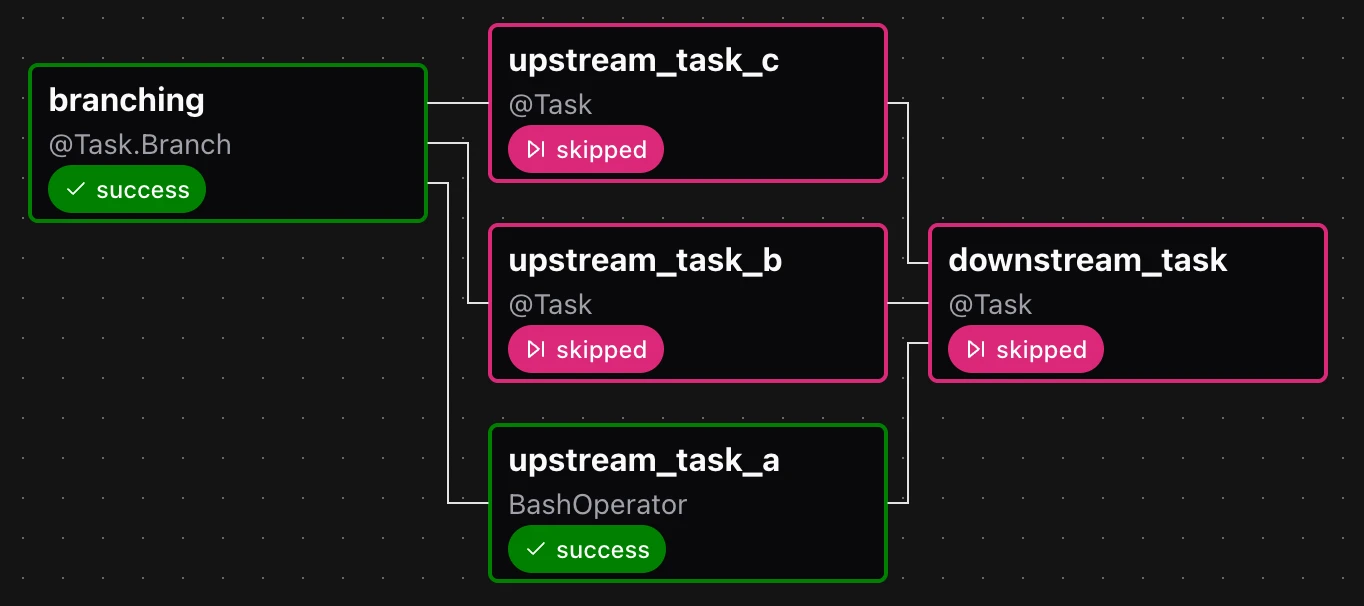

    @task(task_id="downstream_task", trigger_rule="none_skipped")
    def downstream_task():
        print("정상 처리")

    random_branch() >> [upstream_task_a, upstream_task_b(), upstream_task_c()] >> downstream_task()

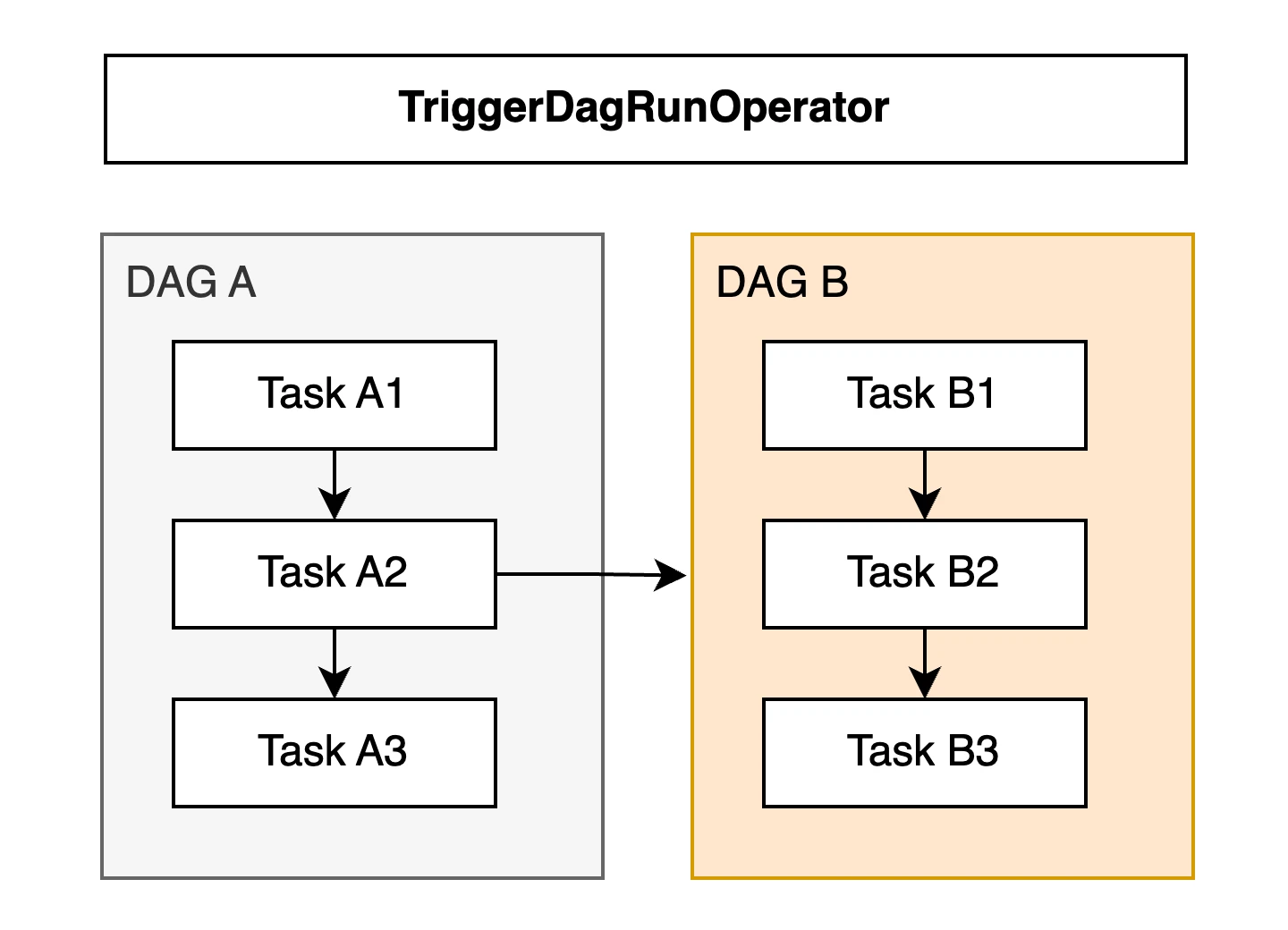

# dags/trigger_dagrun.py

from airflow.sdk import DAG
from airflow.providers.standard.operators.trigger_dagrun import TriggerDagRunOperator
from airflow.providers.standard.operators.bash import BashOperator
import pendulum

with DAG(
    dag_id="trigger_dagrun",
    start_date=pendulum.datetime(2025, 1, 1, tz="Asia/Seoul"),
    schedule="0 0 * * *",
    catchup=False,
    tags=["example", "dagrun"],
) as dag:
    start_task = BashOperator(
        task_id="start_task",
        bash_command="echo \"start!\"",
    )

    trigger_dag_task = TriggerDagRunOperator(
        task_id="trigger_dag_task",
        trigger_dag_id="python_operator",
        trigger_run_id=None,
        logical_date="{{data_interval_start}}",
        reset_dag_run=True,
        wait_for_completion=False,
        poke_interval=60,
        allowed_states=["success"],
        failed_states=None
        )

    start_task >> trigger_dag_task

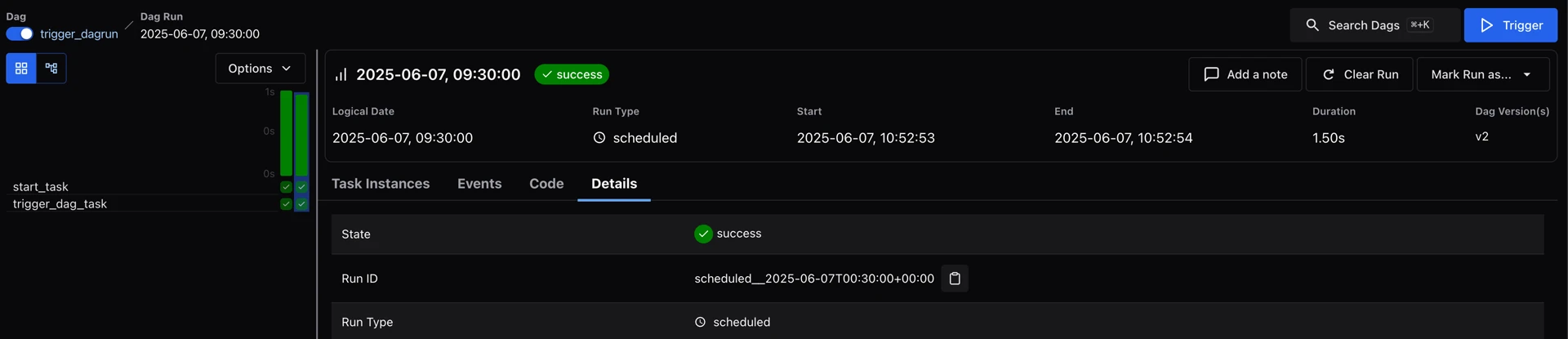

[2025-06-07, 10:52:54] INFO - DAG bundles loaded: dags-folder: source="airflow.dag_processing.bundles.manager.DagBundlesManager"
[2025-06-07, 10:52:54] INFO - Filling up the DagBag from /opt/airflow/dags/trigger_dagrun.py: source="airflow.models.dagbag.DagBag"

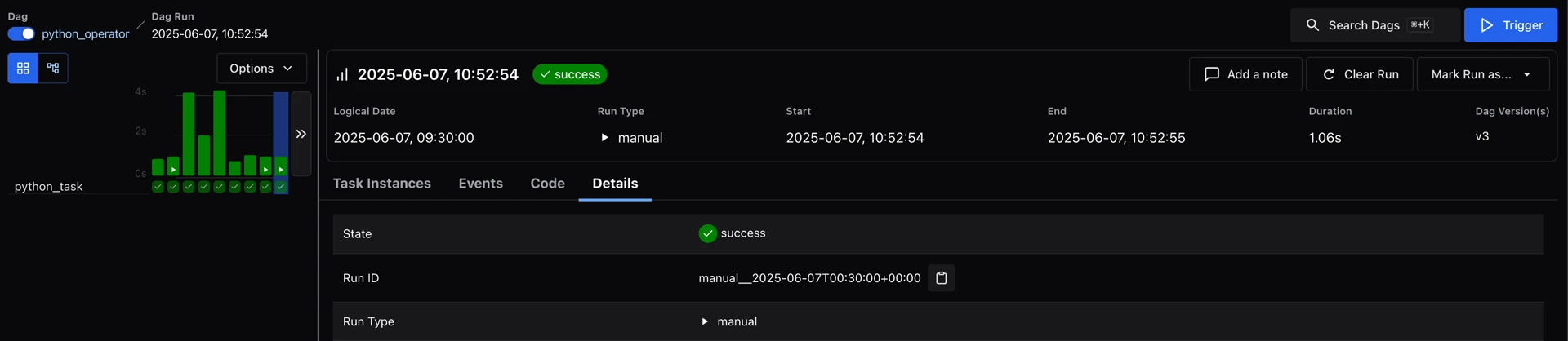

[2025-06-07, 10:52:54] INFO - Triggering Dag Run.: trigger_dag_id="python_operator": source="task"
[2025-06-07, 10:52:54] INFO - Dag Run triggered successfully.: trigger_dag_id="python_operator": source="task"

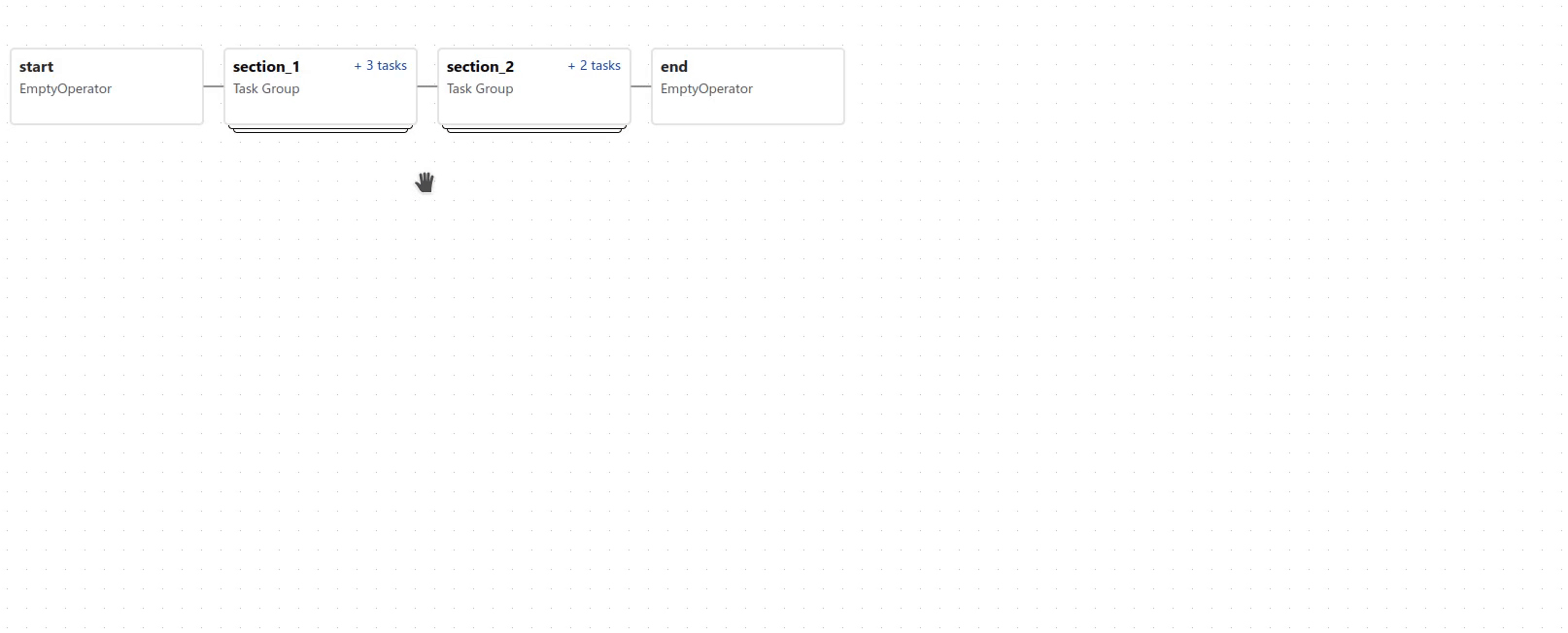

# dags/task_group.py

from airflow.sdk import DAG, task, task_group, TaskGroup
from airflow.providers.standard.operators.python import PythonOperator
import pendulum

with DAG(
    dag_id="task_group",
    start_date=pendulum.datetime(2025, 1, 1, tz="Asia/Seoul"),
    schedule="0 0 * * *",
    catchup=False,
    tags=["example", "branch"],
) as dag:
    def inner_function2(**kwargs):
        msg = kwargs.get("msg") or str()
        print(msg)

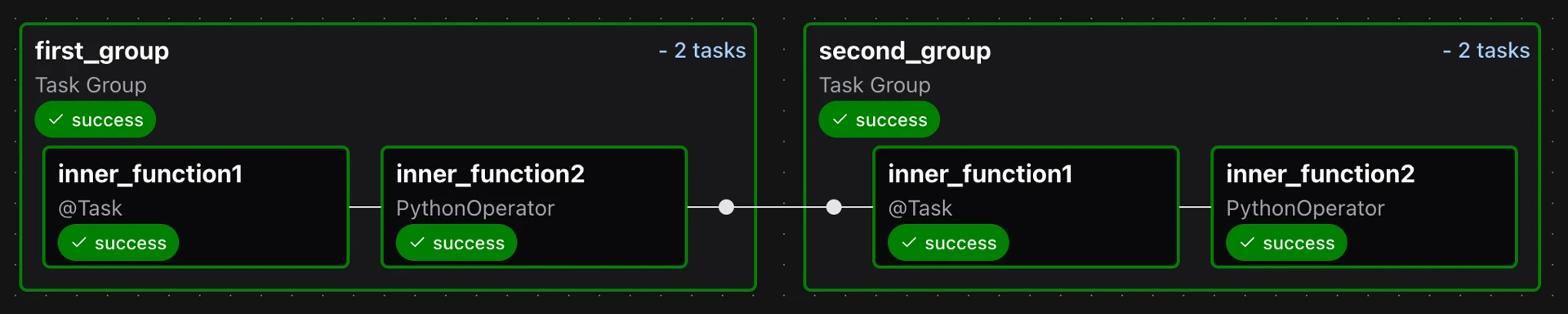

    @task_group(group_id="first_group")
    def first_group():
        """ 첫 번째 TaskGroup 에 대한 Tooltip 입니다. """

        @task(task_id="inner_function1")
        def inner_function1(**kwargs):
            print("첫 번째 TaskGroup 내 첫 번째 Task 입니다.")

        inner_function2 = PythonOperator(
            task_id="inner_function2",
            python_callable=inner_function2,
            op_kwargs={"msg":"첫 번째 TaskGroup 내 두 번째 Task 입니다."}
        )

        inner_function1() >> inner_function2

    with TaskGroup(group_id="second_group", tooltip="두 번째 TaskGroup 에 대한 Tooltip 입니다.") as second_group:
        """ tooltip 파라미터의 내용이 우선적으로 표시됩니다. """
        @task(task_id="inner_function1")
        def inner_function1(**kwargs):
            print("두 번째 TaskGroup 내 첫 번째 Task 입니다.")

        inner_function2 = PythonOperator(
            task_id="inner_function2",
            python_callable=inner_function2,
            op_kwargs={"msg": "두 번째 TaskGroup 내 두 번째 Task 입니다."}
        )

        inner_function1() >> inner_function2

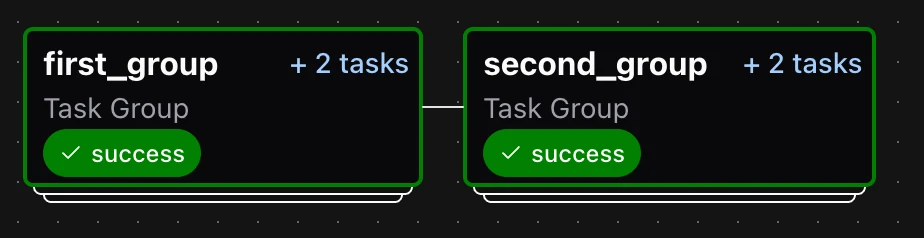

    first_group() >> second_group

# dags/edge_label.py

from airflow.sdk import DAG, Label
from airflow.providers.standard.operators.empty import EmptyOperator
import pendulum

with DAG(
    dag_id="edge_label",
    start_date=pendulum.datetime(2025, 1, 1, tz="Asia/Seoul"),
    schedule="0 0 * * *",
    catchup=False,
    tags=["example", "branch"],
) as dag:
    empty_1 = EmptyOperator(
        task_id="empty_1"
    )

    empty_2 = EmptyOperator(
        task_id="empty_2"
    )

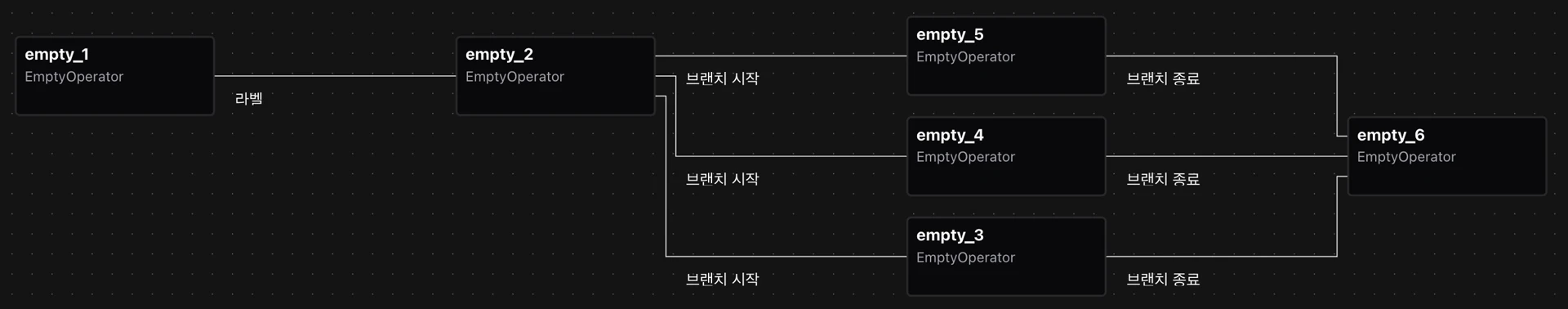

    empty_1 >> Label("라벨") >> empty_2

    empty_3 = EmptyOperator(
        task_id="empty_3"
    )

    empty_4 = EmptyOperator(
        task_id="empty_4"
    )

    empty_5 = EmptyOperator(
        task_id="empty_5"
    )

    empty_6 = EmptyOperator(
        task_id="empty_6"
    )

    empty_2 >> Label("브랜치 시작") >> [empty_3,empty_4,empty_5] >> Label("브랜치 종료") >> empty_6
